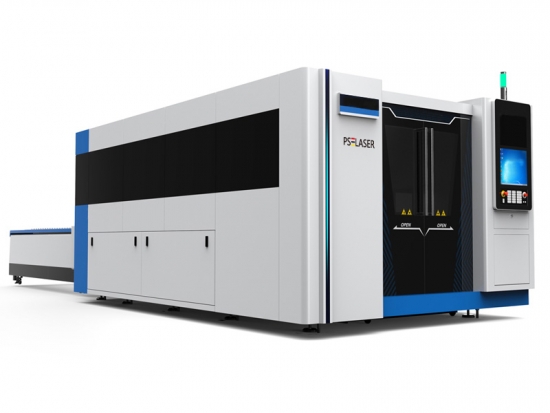

Full Cover CNC Fiber Laser Cutting Machine

Machine Full Covered And Environment Friendly And Small Noise Machine power consumption is only 20~30% compare to Co2 Laser cutting machine Improve the working environment cleanliness ,personal safety and suitable for CE standards The exchange tables can achieve exchanging within 10 seconds Use IPG Fiber Laser Resource and using life more than 100,000 hours

lead time:
1 week
product orgin:
China
brand:
PS
shipping port:
Shanghai
payment:
TT/LC etc.
color:
Customized
MOQ:
1

inquiry now

products details

Product Item: Full Cover CNC Fiber Laser Cutting Machine

Configuration List:

Fiber Laser Source	Raycus/IPG
Fiber Laser Cutting Head	Raytools/WSX
Servo Drive System	Schneider/ Delta
Liner Guider System	Lapping/THK
Transmit System	Dual Rack & Pinion type
Pneumatic Component	SMC/AirTac
ElectricSystem	Schneider
Motor Reducer	Motovario
Nesting Software	Cypcut
Exhaust Blower	Included
Water Chiller Unit	S&A

Steel plate welding

Full Cover Laser Cutting Machine use Gantry welding machine tool with high temperature heat treatment and aging treatment to ensure a smooth and high-speed cutting equipment reliability

Cast Aluminum Beam:

Close Type Fiber Laser Cutting Machine With Cast aluminum beam experienced artificial aging treatment before the finishing machining, which makes its hardness level be T6, together with abrasion resistance and oxidation resistance. The beam is very light because of aluminum material, which makes the speed of manufacturing higher.

Fiber Laser Source

1. Fiber Laser Module

2. Low Energy Consumption: Save energy and protect environment

3. Photoelectric conversion rate is up to 25-30%

4. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine

5. Lifetime is more than 100,000 hours

6. Almost free maintenance.

Water Cooling system

Water cooling system, the temperature of the refrigeration unit in digital chart shows, while water temperature more than a specified temperature, it will automatically refrigeration; while water temperature below a specified temperature it will automatically stop.

Cutting Parameter:

Product Parameters:

Model	PS3015	PS4020	PS6020	PS6025
Working Area (L*W)	3000*1500 mm	4000*2000 mm	6000*2000 mm	6000*2500 mm
Laser Output Power	8000w/6000w/4000w/3000w/2000w/1500w/1000w
X/Y-axis positioning accuracy	± 0.05 mm
X/Y-axis repositioning accuracy	± 0.02 mm
X/Y-axis Max. linkage speed	130 m/min

Carbon Steel Cutting:

Stainless Steel Cutting:

Maanshan Press And Shear Machinery Co., Ltd. was founded in 1988,Our product line encompasses single table laser cutting machine,J23 hydraulic punching machine,DA52S CNC hydraulic press brake and more. If you don’t see what you need listed here, please do not hesitate to contact us for more information.
