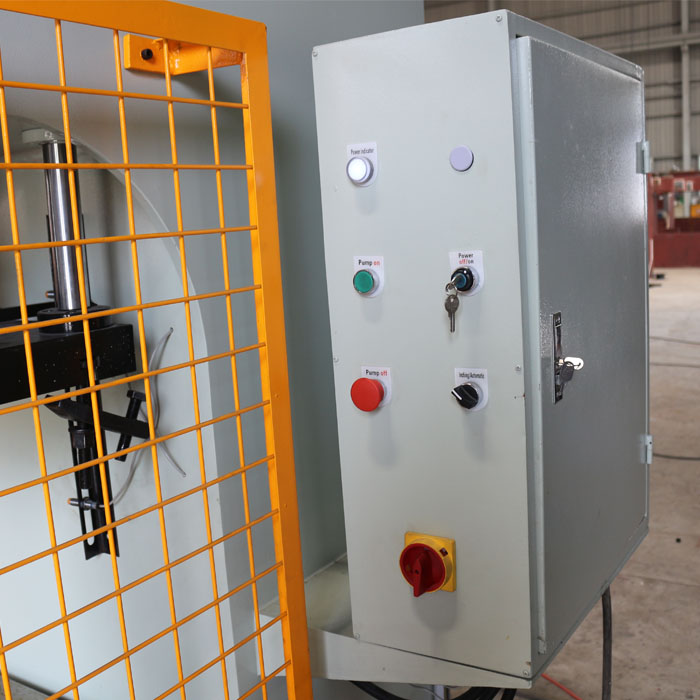

Single Column Hydraulic Press Machine

The hydraulic press machine for steel door skin embossing is used to press a variety of aluminum-plastic panel shop fronts, plywood shop fronts, iron plate shop fronts, and more.

Four column hydraulic press is driven using static pressure from the oil pump, and is used in the manufacturing of metal, plastic, rubber, timber, powder and more.

The Punch Stamping Machine needs a couple of tools including upper die and lower die to pose the huge pressure to materials and form them to different structures with high level precision.

J23 Open Punching Machine Safe, easy to operate, high efficiency.

① 24Arm ATC ② air gun and water gun ③ Chip conveyor ④ 11KW spindle ⑤ Spindle BT40-8000rpm ⑥ Electrical cabinet CE ⑦ Call light、Work lamp ⑧ Full enclosed splash guard ⑨ water box ⑩ water pump 2 pieces ⑾ Auto lubrication systerm ⑿ Air blast ⒀ USBinterface+MPG Processing scope X-axis travel (left and right) mm 1100 Y-axis travel (front and rear) mm 600 Z-axis travel (up and down) mm 600 Distance from nose end of main shaft to working surface mm 120-720 Distance from spindle center to column rail surface mm 650 Table specifications Table size (x-axis direction) mm 1200 Table size (Y-axis direction) mm 600 T-groove of worktable mm 18X5X100 Maximum load of worktable kg 800 Spindle specification Spindle speed rpm 8000 Recommended horsepower of spindle kW 11-15 Taper of main shaft inner hole BT40 feed system G00 rapid feed (X/Y/Z axis) m/min 32/32/24 G01 cutting feed mm/min 1-8000 Servo motor specifications Nm 22 X22 X 22 Tool magazine system (OPT) Magazine capacity ATC Arm 24 Weight approximately KG 6000 Length * width * height Wooden box 3600*2300*2550 Num configure Specification details Manufactor Origin 1 Control system Oi MF PLUS Fanuc Japan 2 X/Z/Y axis servo motor 20Nm Fanuc Japan 3 Special bearing for three axis screw Inner diameter 30, outer diameter 62 NSK Japan 4 Three axis ball screw 4012 HIWIN Taiwan 5 X/Y /Zaxis rail Taiwan original p-roller PGH45/45/45 roller HIWIN Taiwan 6 spindle BT40-150-8000rpm OKADA Taiwan 7 Knife cylinder 4.5T AirTAC Taiwan 8 Tool magazine BT40-24 OKADA Taiwan 9 electrical Schneider Germany 10 Positive displacement automatic lubrication system TZ-2202-210XA river valley joint venture 11 Three axis locking nut YSF M30*1.5P Ying tin Taiwan 12 Triaxial coupling C65L90 Three wood Japan Random attachments： Num Name Specification or mark Num 1 Handle of spring chuck MAS BT40-ER32 1 2 Clip spring 6、8、10、12、16、20 1 3 Pull nail P40T-1-MAS403 1 4 Adjustable sizing block and bolt Self made parts 8

Hydraulic Guillotine Shearing Machine uses blades to cut a variety of metal sheets, including carbon steel, stainless steel, galvanized sheet, cold-rolled sheets, hot-rolled plates, aluminum sheets and more. Using Estun E21S P40 HT072 Delem DAC360 Controller
