2500mm bending length automatic panel bender

Technical Parameters and Specification No. Model Unit PB-1500 1 Bending Length mm 1500 2 Plate Length mm 1600 3 Plate Width mm 1250 4 Bending Height mm 175/200 5 Min Forming Size(Four sides) mm 300*200 6 Min Forming Size(One side) mm 200 7 Min Radius mm 1.2 8 Bending Speed s 0.5/ Bend 9 Opening Height mm 180 10 Angle ° 0-180° 11 Material Thickness mm aluminum：2.0 carbon steel ：1.5 stainless steel：1.2 12 Numerical System Star300-LGx 13 Operating System OS Win7+OS 14 Axis axis 12 15 Machine Dimension Length mm 3370 Width mm 1890 Height mm 2650 16 Machine Weight kg 9900

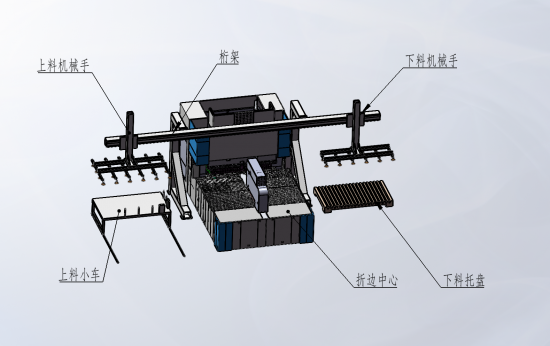

PANEL BENDER MODEL: PB-1500 INCLUDES TWINS TRUSS LOADING SYSTEM MAX BENDING LENGTH 1500MM WITH A LOADING SYSTEM BY TWINS TRUSS SYSTEM

UNIT PS-4016 BENDING FORCE KN 400 BENDING LENGTH mm 1600 CLUMON DISTANCE mm 1320 THROAT mm 410 MAX OPENING HEIGHT mm 290 STROKER SLIDE mm ±30 ●SPEED Y FAST DOWN SPEED mm/s 200 Y WORKING SPEED mm/s 50 Y RETURN SPEED mm/s 200 X FAST SPEED mm/s 400 R FAST SPEED mm/s 200 Z1/Z2 FAST SPEED mm/s 400 ● REPOSITION PRECISION Y mm ±0.01 X mm ±0.02 R mm ±0.1 Z1/Z2 mm ±0.1 ● WORKING STROKE Y mm 180 X mm 500 R mm 150 Z1/Z2 mm 700 ● CNC SYSTEM SL100-P4/6 installed capacity 6kVA MACHINE SIZE 1700×1250×2300 MACHINE WEIGHT kg 3500

1. CE Certificate  2 .12 station servo hydraulic turret  3. 8 Inch hydraulic chuck  4. Accuracy check report  5. Chip conveyor  6. 11KW spindle motor  7. Standard tool holder 4pcs  8. Work light  9.Three color alarm light  10.Foot pedals for chuck and tailstock  11.Soft Claw 1Pcs

Horizontal CNC V Groove Machine is used to make a V shaped groove on metal plates, including stainless steel thin plates, aluminum plates, composite aluminum plates, copper plates and more. Horizontal CNC V Groove Machine is suitable for big plate and cut symmetrical plates

① 24Arm ATC ② air gun and water gun ③ Chip conveyor ④ 11KW spindle ⑤ Spindle BT40-8000rpm ⑥ Electrical cabinet CE ⑦ Call light、Work lamp ⑧ Full enclosed splash guard ⑨ water box ⑩ water pump 2 pieces ⑾ Auto lubrication systerm ⑿ Air blast ⒀ USBinterface+MPG Processing scope X-axis travel (left and right) mm 1100 Y-axis travel (front and rear) mm 600 Z-axis travel (up and down) mm 600 Distance from nose end of main shaft to working surface mm 120-720 Distance from spindle center to column rail surface mm 650 Table specifications Table size (x-axis direction) mm 1200 Table size (Y-axis direction) mm 600 T-groove of worktable mm 18X5X100 Maximum load of worktable kg 800 Spindle specification Spindle speed rpm 8000 Recommended horsepower of spindle kW 11-15 Taper of main shaft inner hole BT40 feed system G00 rapid feed (X/Y/Z axis) m/min 32/32/24 G01 cutting feed mm/min 1-8000 Servo motor specifications Nm 22 X22 X 22 Tool magazine system (OPT) Magazine capacity ATC Arm 24 Weight approximately KG 6000 Length * width * height Wooden box 3600*2300*2550 Num configure Specification details Manufactor Origin 1 Control system Oi MF PLUS Fanuc Japan 2 X/Z/Y axis servo motor 20Nm Fanuc Japan 3 Special bearing for three axis screw Inner diameter 30, outer diameter 62 NSK Japan 4 Three axis ball screw 4012 HIWIN Taiwan 5 X/Y /Zaxis rail Taiwan original p-roller PGH45/45/45 roller HIWIN Taiwan 6 spindle BT40-150-8000rpm OKADA Taiwan 7 Knife cylinder 4.5T AirTAC Taiwan 8 Tool magazine BT40-24 OKADA Taiwan 9 electrical Schneider Germany 10 Positive displacement automatic lubrication system TZ-2202-210XA river valley joint venture 11 Three axis locking nut YSF M30*1.5P Ying tin Taiwan 12 Triaxial coupling C65L90 Three wood Japan Random attachments： Num Name Specification or mark Num 1 Handle of spring chuck MAS BT40-ER32 1 2 Clip spring 6、8、10、12、16、20 1 3 Pull nail P40T-1-MAS403 1 4 Adjustable sizing block and bolt Self made parts 8
